How Does an Oxygen Concentrator Work? The Science of PSA Technology Explained

If you or a loved one has recently been prescribed oxygen therapy, bringing a medical machine into your home can feel overwhelming. Looking at a device like the Olive OLV-5S or OLV-10S, you might wonder: Where exactly does the oxygen come from? Will it run out? Do I need to refill it?

The good news is that unlike traditional oxygen tanks, an oxygen concentrator never runs out of oxygen as long as it has power. It doesn’t "store" oxygen; it manufactures it right from the air in your living room.

In this guide, we will break down exactly how an oxygen concentrator works, replacing confusing medical jargon with simple, easy-to-understand science.

The Simple Answer: It’s a High-Tech Air Filter

To understand how a concentrator works, you first need to know what is in the air we breathe. Normal room air is composed of approximately 21% oxygen, 78% nitrogen, and 1% other trace gases.

An oxygen concentrator acts as a highly specialized "air refinery." Its sole job is to pull in this regular room air, strip away the nitrogen, and deliver the remaining concentrated oxygen—usually at a purity of 90% to 96%—directly to you.

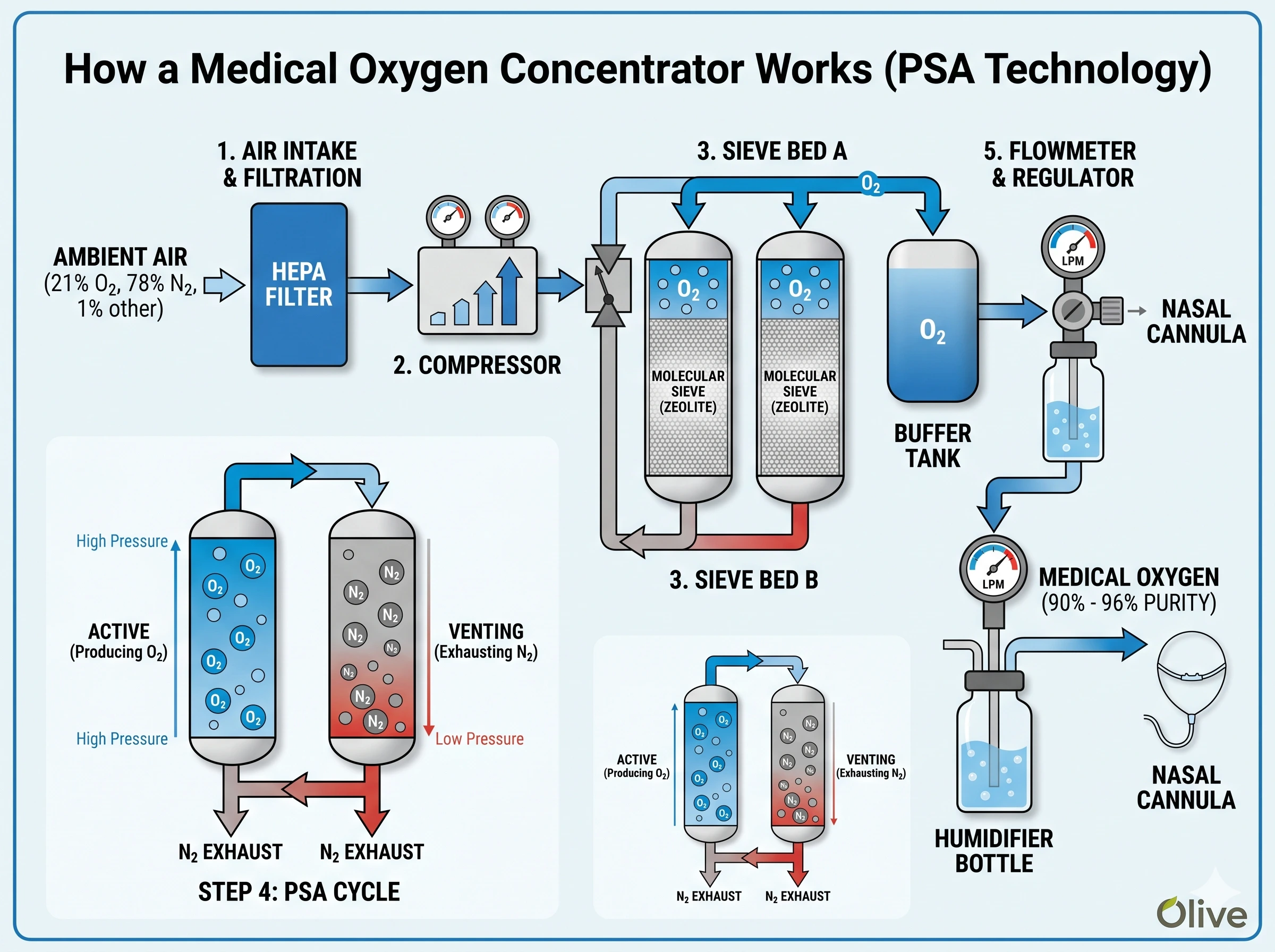

The 5-Step Process of Oxygen Concentration (PSA Technology)

Modern medical concentrators rely on a reliable process called Pressure Swing Adsorption (PSA). Here is the exact step-by-step journey the air takes inside the machine:

Step 1: Air Intake and Filtration
The machine draws in ambient room air through an external air inlet. Before the air goes anywhere near the internal mechanics, it passes through a series of filters, including a HEPA filter. This crucial step blocks dust, bacteria, and allergens, ensuring the air is clean and safe for your lungs.

Step 2: Compression

Once filtered, the clean air enters the compressor. The compressor squeezes the air, significantly increasing its pressure. This high pressure is absolutely necessary for the chemical separation process that happens next.

Step 3: Nitrogen Scrubbing (Molecular Sieves)
This is where the magic happens. The pressurized air is forced into cylindrical beds filled with medical-grade molecular sieves. These sieves are made of a porous material called Zeolite. Under high pressure, Zeolite acts like a magnet for nitrogen, trapping the nitrogen molecules while allowing the smaller oxygen molecules to pass right through.

Step 4: The Pressure Swing Adsorption (PSA) Cycle
To provide a continuous flow of oxygen, concentrators usually have two sieve beds. While one bed is busy catching nitrogen and pushing oxygen to the user, the other bed depressurizes, releasing its trapped nitrogen safely back into the room. The machine constantly "swings" back and forth between these two beds.

Step 5: Oxygen Delivery
The resulting pure oxygen is collected in a buffer tank to stabilize the pressure. It then passes through a medical flowmeter, which allows you to precisely control the flow rate (such as 2 or 5 liters per minute). Finally, the oxygen bubbles through a humidifier bottle to add moisture before reaching your nasal cannula, preventing your airways from drying out.

Inside the Machine: Core Components You Should Know

As a manufacturer with over 11 years of experience, we know that the lifespan of an oxygen concentrator depends entirely on the quality of its internal parts. Here is what does the heavy lifting:

• The Compressor: The heart of the unit. Premium machines often use imported parts, like France Saint-Gobain compressor cups, to ensure durable, 24/7 continuous working capabilities.

• Molecular Sieves: The brain of the unit. The quality of the zeolite directly impacts the oxygen purity.

• Bacterial Filters: Additional internal filters (like Italy GVS bacterial filters) ensure the highest level of respiratory safety.

Why Understanding This Process Matters for Daily Use

Knowing that your machine relies on airflow and physical filters helps you use it better:

• Keep it ventilated: Because the machine needs to draw in air and exhaust nitrogen, it should never be pushed flush against a wall or buried under blankets. Always leave at least 20cm of clearance around the device.

• Maintain your filters: The HEPA and intake filters are your machine's first line of defense. If they get clogged with pet hair or dust, the compressor has to work harder, which can lead to overheating and a drop in oxygen purity. Clean and replace them as recommended by the manufacturer.

Frequently Asked Questions (FAQ)

Q: Will an oxygen concentrator use up all the oxygen in my room?
A: No. The concentrator simply separates the oxygen from the nitrogen. The nitrogen it filters out is released back into the room. The overall balance of gases in your home remains completely safe and unchanged.

Q: Do I ever need to "refill" an oxygen concentrator?

A: Never. As long as the machine is plugged into a power source and has access to room air, it will continuously generate oxygen.

Q: Why does my machine make a "hissing" or "puffing" sound?

A: That sound is the machine safely releasing (exhausting) the trapped nitrogen back into the room. It is a completely normal part of the Pressure Swing Adsorption cycle and means your machine is working perfectly!

Q: Can I run my oxygen concentrator all night? A: Yes. Reliable medical-grade oxygen concentrators are engineered for 24/7 continuous operation to support patients who need oxygen while sleeping.

Q: What is the normal oxygen purity of these machines?

A: A standard medical-grade oxygen concentrator will output an oxygen concentration of 90% to 96%.
